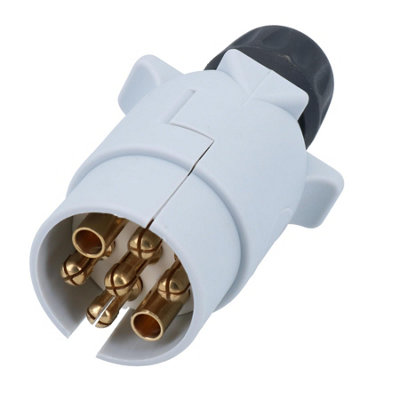

B&Q - Tow Bar Electrics 7 Pin S Type Plastic Grey Socket & Plug For Caravans Hook Up

Name: B&Q - Tow Bar Electrics 7 Pin S Type Plastic Grey Socket & Plug For Caravans Hook Up
Brand: AB Tools

AB Tools

Tow Bar Electrics 7 Pin S Type Plastic Grey Socket & Plug For Caravans Hook Up\n\n \n\nDescription\n\n7 Pin Socket Specifications\n\n This listing is for a 7 Pin socket (S type) to power supplementary circuits on caravans.\n\nIdeal for new tow bars or for replacing damaged sockets on existing cars.\n\nScrew connection inside the plug, easy for DIY replacement. \n\nBrass pins in a durable plastic housing.\n\nProvides connections for reversing lamps, battery charging, fridge and other power.\n\nPIN 1 Yellow Wire (Reversing Lights)\n\n PIN 2 Blue Wire (Battery Charging)\n\n PIN 3 White Wire (Earth Return for pins 2 & 4)\n\n PIN 4 Green Wire (Power Supply)\n\n PIN 5 Brown Wire (Spare)\n\n PIN 6 Red Wire (Fridge)\n\n PIN 7 Black Wire (Earth Return for Pin 6)\n\n This shows the standard wiring colours, that are recommended for maximum compatibility but your car might not be standard and older installations may vary. \n\n If your socket is wired differently then you should note.
