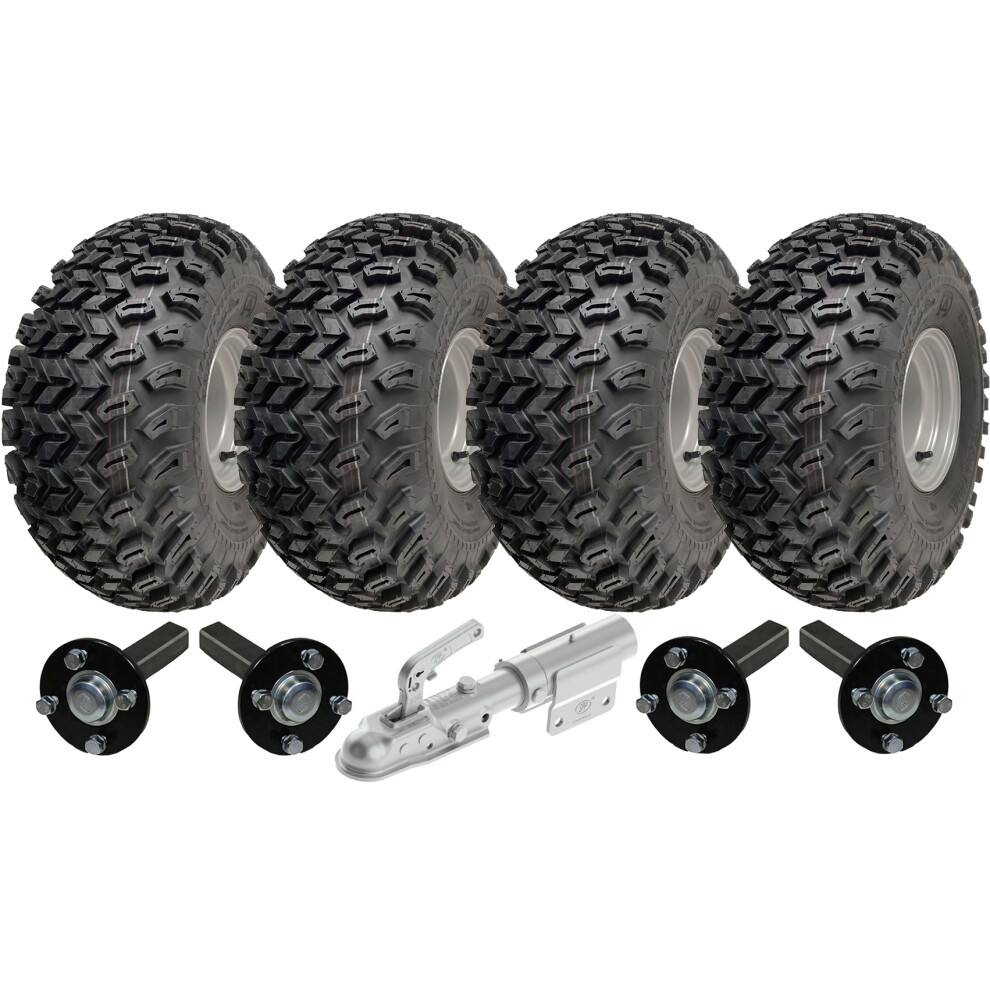

Parnells 22X11.00-8 Twin Axle Utility Atv Quad Trailer Kit Wheels & Axles & Swivel Hitch

Parnells

For sale is 1 new 22x11.00-8 twin axle ATV trailer kit.This kit contains:Four - 22x11.00-8 wheels &Four - 40mm x 40mm hub and stub axles.One - Swivel tow hitch.Rugged & tubeless utility Wheels.They are hard wearing 4ply tyres with a tread depth of 15.5mm. Tyre Specifications:• 22x11.00-8 4ply Wanda P334 Utility tyres,• Overall diameter: 565mm,• Max width of tyre: 255mm,• Tread depth: 15.50mm,• Inflation PSI: 20psi,• Max load per wheel: 455kg @ 50km/h,• load/speed index: 80B,• E-marked tyres: E4-75R-0005149,Wheel rims:Heavy duty welded rims, Powder coat paint with E-coating anti-corrosion treatment for superior finish,Pitch Circle Diameter: 100mm,Centre hole diameter: 60mm.Item specifications: Stub axles.Hubs are forged steel, black paint finish, fitted with 4x12mm wheel bolts,PCD is 100mm, Bearing is sealed for life automotive bearing, 30mm Internal, 60mm external, 37mm long,The hubs are waterproof,The shaft is 40x40mm x 200mm long, solid steel,The stub bar has two pre-drilled mounting holes.Item specifications: Swivel Hitch.Heavy duty steel towing hitch with 360 Degree rotation.This hitch sits over a 50X50mm box section fixed in place with 2 mounting holes (75mm apart). The bolt holes are from an M12 bolt. Overall length is 440mm. Max load is 1700kg. Safety feature for off road towing. If your trailer turns over the swivel hitch rotates and your vehicle towing is not flipped with it. Potentially saving lives.Weight capacity is 900kg per pair. 1800kgs total.The swivel hitch makes this kit for off road use only.
