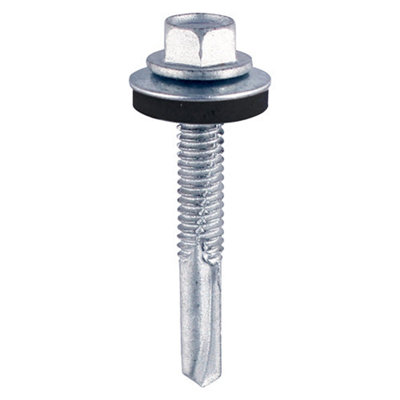

TIMCO Hex Screw W16 S/DRILL No5 Zinc 5.5 x 80 Silver Pack 100
TIMCO
Used for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. ApprovalBS EN 10666 (DIN 7504)Corrosion Rating1 - Clean, dry & low humidity environmentsDescriptionUsed for attaching metal to heavy section steel (Max. 12mm) without the need to pre-drill a hole. Drill Tip Angle degree110Drill Tip Length mm15.00Drill Tip Width mm5.00Effective Thread Length mm53 *P/TEPDM Washer mm16FinishZincFixed Washer Dia. mm12.00Head Height mm5.60Head TypeHexIncluded Items16mm EPDM WashersLength mm80MaterialCase & Core Hardened Carbon SteelMax Drilling Thickness mm12.0Max Torque Nm11Pack Dimensions L x W x H mm180 x 90 x 90Pack Weight kg1.400Point TypeSelf-Drilling No.5Product CodeZH80W16BRec RPM1,000 - 1,800Size mm5.5 x 80Socket Size mm8SubstratesSteelThread Dia. mm5.5Thread Type*P/T = Partially Threaded, Metric with V Flutes & Torque Relieving Slash.
Compare prices (5 shops)
| shop | Price | Action |
|---|---|---|
|
11,64 GBP | Go to shop |
|
16,78 GBP | Go to shop |
|
19,25 GBP | Go to shop |
|
|
19,25 GBP | Go to shop |
|
19,75 GBP | Go to shop |
