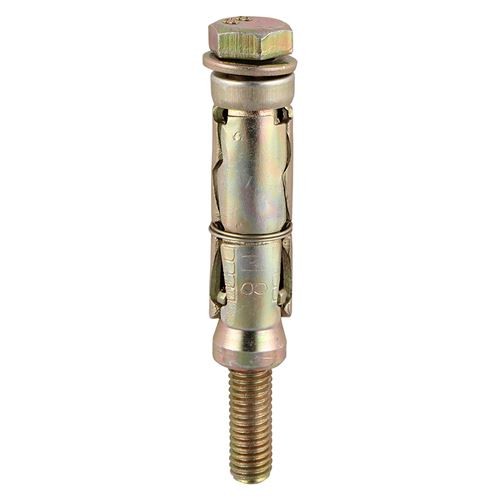

TIMCO Shield Anchor Loose Bolt - ZYP M8:40L (M8 x 90) Gold Pack 22

TIMCO

Ideal for fixing through the fixture once the shield has been installed into substrate.\n\n\u2022 Compatible with most types of metric threaded components\n\u2022 A three segmented expansion anchor used in concrete, brick or stone\n\u2022 Torque controlled\n\u2022 Bolt grade 8.8\nBolt L (mm)90BrandTIMCOCarton Qty (packs)5Corrosion Rating (1-5)1 - Clean, dry & low humidity environmentsFinishZinc & YellowFixture Hole Size \u00D8 (mm)10MaterialCarbon SteelMFT (mm)40MOQ1MOQ1MOQ Increment1MOQ Increment1Pack Dimensions L x W x H (mm)265 x 152 x 50Pack Qty22Pack TypeTIMbagPack Weight (kg)1.27Pallet Qty (packs)500Point TypeB PointShield L (mm)50Socket Size (mm)13SubstratesConcrete, Brick, StoneThread \u00D8 (mm)M8Thread \u00D8 x L (mm)M8 x 90Thread TypeMetricTypeLoose
