Siemens 6ES7138-4CB11-0AB0 Power Module+TM-P15C23-A0 24-48V Dc/24-230V AC 6ES7
Siemens
SIEMENS SIMATIC DP 6ES7138-4CB11-0AB0 PM-E power modules for ET 200S 24-48 V DC, 24-230 V AC, with diagnostics and fuse - NEW\n\nItem is listed elsewhere. \nVAT invoice will be provided.\n\nSpecificationsGeneral information\nProduct function\n\u25CF Isochronous mode Yes\nSupply voltage\nLoad voltage L+\n\u25CF Rated value (DC) 24 V\n\u25CF Reverse polarity protection Yes\nInput current\nfrom load voltage L+ (without load), max. 55 mA\nfrom backplane bus 3.3 V DC, max. 10 mA\noutput voltage / header\nsupply voltage of the transmitters / header\n\u25CF present No\nPower loss\nPower loss, typ. 0.85 W\nAddress area\nAddress space per module\n\u25CF Address space per module, max. 4 byte\nAnalog inputs\nNumber of analog inputs 2\npermissible input voltage for voltage input (destruction limit),\nmax.\n35 V; 35 V continuous; 75 V for max. 1 ms\nCycle time (all channels) max. 0.5 ms; 0.5 ms for 2 channels without noise suppression, 18 / 21 ms per\nchannel with noise suppression*
Compare prices (11 shops)
| shop | Price | Action |
|---|---|---|
|
5,36 GBP | Go to shop |
|
|
5,93 GBP | Go to shop |
|
|
11,00 GBP | Go to shop |
|
|
13,10 GBP | Go to shop |
|
|
15,00 GBP | Go to shop |
|
|
17,40 GBP | Go to shop |
|
|
18,44 GBP | Go to shop |
|
|
40,00 GBP | Go to shop |
|
|
42,00 GBP | Go to shop |
| RS Components Ltd- UK | 45,00 GBP | Go to shop |
|
|
91,20 GBP | Go to shop |
Similar products
-
-

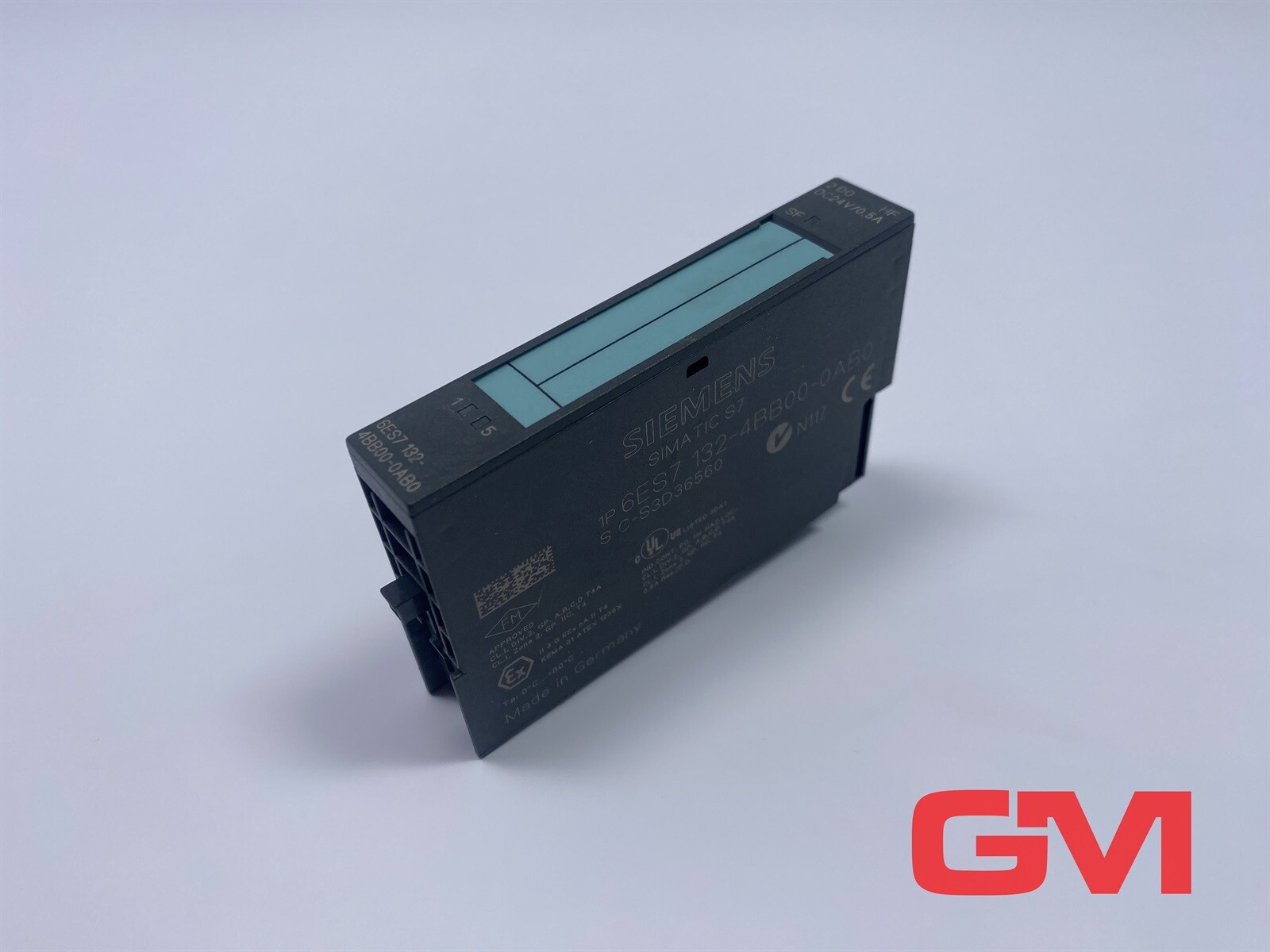

Siemens Electronic Module 6ES7132-4BB00-0AB0 E03 Simatic DP
